Description
Electromagnetic flowmeters are the best solution to measure conductive liquids with a minimum conductivity of 5μS/cm, as they offer rapid response time, high measuring accuracy, and long-term stability. No moving parts in the pipe and no obstruction to the liquid, with the great advantage of a no-pressure loss and virtually maintenance-free system. Our electromagnetic flowmeters cover a wide range of applications and satisfy every customer demand: flanged, wafer, threaded, and insertions DN25 with pressure class up to ANSI900.
- Flow tube Material AISI 304, AISI 316 (optional).
- Flanges Material Carbon steel (S235JR – 1.0037), AISI 304 optional, AISI 316 optional.
- Available electrodes: AISI316 (standard), Hastelloy C, Hastelloy B, Titanium, Tantalum, Platinum.
- Internal lining:g Ebonite.
- Liquid Temperature -40°C / + 80°C.
- Available Diameters: 1” inches(25mm).
- Standard flanged connection EN1092-1 PN 16, ANSI 150.
- Flanged Connection on request AS 2129 (Table D, E, F), AS 4087 (PN 16, 21), KS10K, and others on request.
- Standard Operating Pressure 21 Bar.
- Pressure Drop Class DN≤80 ΔP10 (< 0,10 bar) and DN≥100 ΔP16 (< 0,16 bar).
- Installation requirements/conditions U0-D0.
- Protection Degree IP68 permanent submersion at 1,5 m (EN 60529).
- Converted Compatibility MC608A/B/R/P, MC406.
- Electrical Connections Cableglands M20 x 1.5 + terminal box + sealing resin.

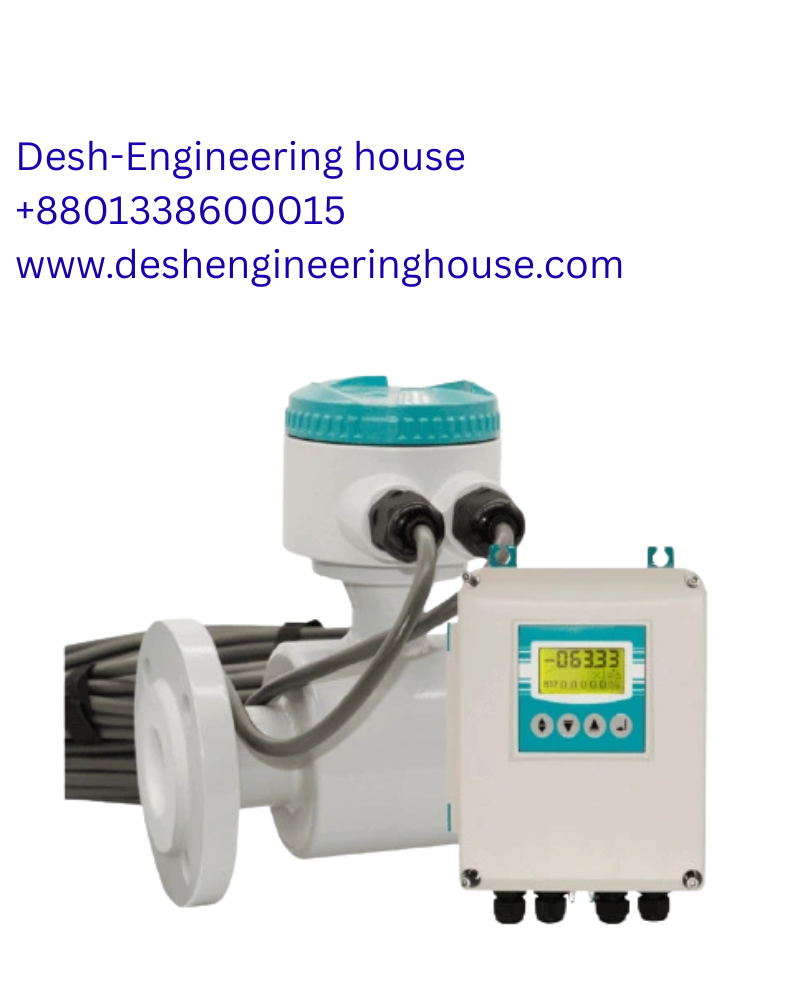

1 Inch Digital Electromagnetic Water Flow Meter in Bangladesh
Looking for an accurate and reliable water flow measurement solution in Bangladesh? The 1 Inch Digital Electromagnetic Water Flow Meter is designed to provide precise flow rate readings for various industrial, agricultural, and water management applications. With its digital display and electromagnetic sensing technology, this flow meter ensures high accuracy, durability, and easy installation.
Overview of 1 Inch Digital Electromagnetic Water Flow Meter
The 1 Inch Digital Electromagnetic Water Flow Meter operates on Faraday’s law of electromagnetic induction, which ensures precise flow measurement even under varying pressure and temperature conditions. It is ideal for measuring clean water, wastewater, chemicals, and other conductive fluids. Perfect for use in industries, irrigation systems, and municipal water networks across Bangladesh.
Key Features of 1 Inch Digital Electromagnetic Water Flow Meter
-
Pipe Size: 1 inch (25mm)
-
Type: Digital electromagnetic flow meter
-
Display: Clear digital LCD for real-time flow data
-
Accuracy: High accuracy up to ±0.5% of reading
-
Power Supply: AC/DC options available
-
Material: Corrosion-resistant body suitable for industrial use
-
Output: Pulse and analog signal output for monitoring systems
-
Installation: Easy to install on horizontal or vertical pipelines
-
Maintenance: Low maintenance with no moving parts
Why Choose the 1 Inch Digital Electromagnetic Flow Meter in Bangladesh?
The 1 Inch Digital Electromagnetic Water Flow Meter is a cost-effective and efficient solution for Bangladeshi industries that require accurate and continuous flow monitoring. Its digital interface and non-intrusive sensing make it suitable for demanding environments such as water treatment plants, chemical factories, and irrigation systems.
Applications of a 1 Inch Digital Electromagnetic Water Flow Meter
-
Industrial water flow measurement
-
Municipal and community water supply systems
-
Agriculture and irrigation networks
-
Wastewater treatment plants
-
Food, beverage, and chemical industries
-
HVAC and process control systems
Benefits for Bangladeshi Users
-
Accurate and stable measurement even in low flow conditions
-
Digital display for easy reading and monitoring
-
Long lifespan with corrosion-resistant materials
-
No moving parts – reduces wear and maintenance costs
-
Suitable for various fluids – water, wastewater, and chemicals
-
Energy-efficient and reliable for 24/7 operation
Buy a 1 Inch Digital Electromagnetic Water Flow Meter in Bangladesh
If you want to buy a 1 Inch Digital Electromagnetic Water Flow Meter in Bangladesh, Desh Engineering House offers high-quality and affordable meters with installation support, calibration, and after-sales service. Whether for industrial or agricultural use, this flow meter ensures precise flow monitoring and long-lasting performance.
Contact Desh Engineering House today to get the best price and expert service for your Digital Electromagnetic Water Flow Meter in Bangladesh.
